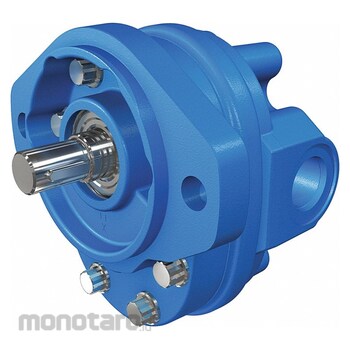

VICKERS Hydraulic Gear Pump
#Grup produk P109583938
Spesifikasi
| UNSPSC | 40151533 |
|---|---|
| Continuous Pressure (Maximum) (psi) | 3000 |
| Discharge Connection Size | 7/8\"-14 |
| Displacement per Revolution (cu.in/rev) | 0.5 |
| End Cap Material | Aluminium |
| Housing Material | Aluminium |
| Hydraulic Pressure Port Location | Side |
| Intake Connection | 17/16\"-12 SAE |
| Maximum Motor Speed (rpm) | 3600 |
| Media Intake Connection Size | 17/16\"-12 |
| Media Intake Connection Type | SAE |
| Motor Minimum Speed (rpm) | 750 |
| Mounting Type | 2 Bolt SAE A |
| Overall Height (inch) | 5.2 |
| Overall Length (inch) | 5 |
| Overall Width (inch) | 5.1 |
| Rotation | CW |
| Shaft Outer Diameter (inch) | 3-1/4 |
| Shaft Type | Keyed |
| Sub Brand | GEAR PUMPS |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Unidirectional hydraulic gear pumps create pressure suitable for low-pressure applications requiring a constant and high flow rate. They are single-stage pumps with a drive shaft that turns in one direction, clockwise or counterclockwise.
Feature
Hydraulic Gear Pump Displacement per Revolution 0.5 cu in/rev Media Intake Connection Size 17/16 In.-12 Discharge Connection Size 7/8 In.-14 Continuous Pressure- Maximum 3 000 psi Motor Speed - Maximum 3 600 RPM Motor Speed - Minimum 750 RPM Shaft Type Keyed Rotation CW Housing Material Aluminum Mounting Type 2 Bolt SAE A End Cap Material Aluminum Hydraulic Pressure Port Location Side Media Intake Connection Type SAE Overall Height 5.2 in Overall Length 5 in Overall Width 5.1 inUlasan Produk
