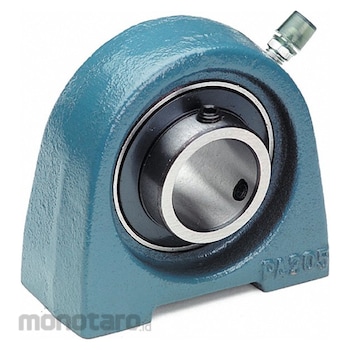

TRITAN Tapped-Base Pillow Block Ball Bearing
#Grup produk P109583318
Spesifikasi
| UNSPSC | 31171511 |
|---|---|
| Bearing Insert Material | Alloy Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 52100 |
| Bore Diameter Tolerance (inch) | ± 0.0007 |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Expansion Type | Fixed |
| Features | Anti-Rotation Device; Dual Heavy-Duty Slinger Type Contact Seals; Grease Fitting for Adding Lubricant; One-Piece Cast Iron Housing, Solid Base; Standard Duty Unit, Eccentric Locking Collar; Triple Lip Seals Available on Request; Wide Inner Ring Bearing |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Lubricant Material | Grease |
| Lubrication Openings | Grease Fitting |
| Maximum Temperature (°F) | 250 |
| Minimum Temperature (°F) | -40 |
| Mount Hole Center to Center Length (inch) | 2 |
| Mount Type | Bolt-Through |
| Mounting Bolt Size | M10 |
| Mounting Surface to Shaft Center Height (inch) | 1.312 |
| Number of Mount Holes | 2 |
| Resistance Properties | Corrosion Resistant; Rust Resistant; Wear Resistant |
| Seal Material | Synthetic Rubber |
| Seal Type | Contact |
| Series | UCPA |
| Shaft Locking Type | Set Screws |
| Standards | AFBMA; ISO |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These tapped-base pillow block ball bearings are useful in general purpose applications where a bearing with a smaller footprint is needed.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Pillow Block Bearing Base Height 0.57 in Base Width 1.259 in Bearing Insert Material Alloy Steel Bearing Insert Type Radial Ball Bore Diameter 3/4 in Bore Type Cylindrical Center Height 1 19/64 in Closure Double Sealed Expansion Type Fixed Housing Material Cast Iron Lubricant Material Grease Maximum Temperature 250 Degrees F Minimum Temperature -40 Degrees F Mount Hole Center-to-Center Length 2 in Mount Type Bolt-Through Number of Mount Holes 2 Overall Height 2.519 inUlasan Produk
