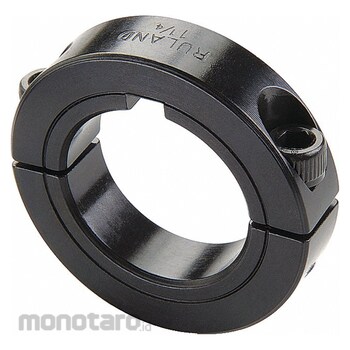

RULAND MANUFACTURING Shaft Collar for Keyed Shaft
#Grup produk P109575939
Spesifikasi
| UNSPSC | 31162811 |
|---|---|
| Bore Tolerance (inch) | +0.002/+0.0005 |
| Bore Type | Round Keyed |
| Collar Construction | 2-Piece |
| Included Screws | (2) Hex Socket Cap Screw |
| Minimum Operating Temperature (°F) | -40 |
| Screw Thread Size | 1/4\"-28 |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance (inch) | +0.0000/-0.0005 |
| Standards | ANSI; Conflict Minerals Compliant; ISO 9001:2015; REACH Compliant; RoHS Compliant |
| System of Measurement | Inch |
| Width Tolerance (inch) | +0.003/-0.010 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Two-piece keyed shaft collars separate fully and install around a hard or soft keyed shaft without marring or disassembly of equipment.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Shaft Collar System of Measurement Inch Bore Type Round Keyed Bore Diameter 3/4 in Bore Thread Size Not Applicable Collar Outside Diameter 1 1/2 in Inside Height to Flat Not Applicable Clearance Diameter 1.81 in Collar Width 1/2 in Collar Material Carbon Steel Keyway Width 3/16 in Collar Material Grade 1215 Keyway Depth 3/32 in Thread Direction Not Applicable Center to Lever Top Not Applicable Collar Construction 2-Piece Screw Material Alloy SteelUlasan Produk
