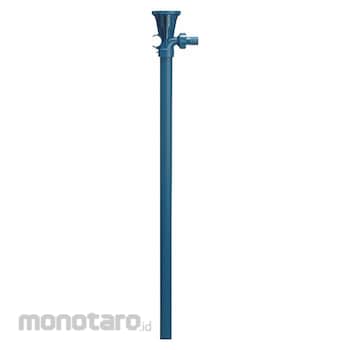

FINISH THOMPSON Drum Pump Tub
#Grup produk P109558516
Sebelum PPN:
Rp5.599.900 - Rp21.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40151529 |
|---|---|
| Discharge Connection Type | Hose Barb |
| Food Grade | No |
| Runs Dry | No |
| Self Priming | Yes |
| Suction Tube OD (inch) | 1-3/16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Drum pump tubes are assemblies with a rigid intake shaft and an impeller for drawing fluid out of a container. Also called a barrel tube, these tubes attach to a pump motor and fit through the opening of a container to dip into the fluid within. The impeller rotates when driven by a pump motor to move fluid through the shaft and up to the outlet of the pump. Drum pump tubes can replace a damaged tube on an existing drum pump assembly or be paired with a separate motor to create a custom pump assembly. They can also be swapped out to adapt a drum pump for compatibility with different fluids.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Drum Pump Tube Suction Tube Length 16 in Pump Package Type Drum Pump Tube Suction Tube Material Polypropylene Suction Tube ID 1 1/4 in Suction Tube OD 1 3/16 in Discharge Tube Outlet ID 3/4 in Discharge Tube Outlet OD 1 in Discharge Connection Type Hose Barb Overall Length 19 1/4 in For Container Size 5 gal For Container Type Bucket Max Flow Rate 17 gpm Max Viscosity 300 CPS Min Fluid Temp 0 Degrees F Max Fluid Temp 150 Degrees F Max Head 20 ft Max Head Pressure 8.6 psiUlasan Produk
