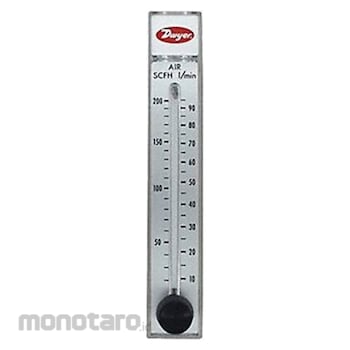

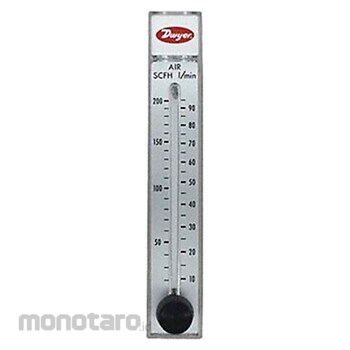

Dwyer Variable Area Flowmeter
#Grup produk P109555856
Sebelum PPN:
Rp3.999.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Body Material | Polycarbonate |
|---|---|
| Connection Type | FNPT |
| Flowmeter Type | Variable Area |
| Includes Flow Rate Adjustment Knob | Yes |
| Maximum Media Temperature (°F) | 130 |
| Maximum Operating Pressure (psi) | 100 |
| Media Temperature Range (°F) | 130 |
| Mounting Location | Panel Mount |
| Mounting Orientation | Vertical |
| O-Ring Materials | Buna-N; Neoprene |
| Product Type | Variable Area Flowmeter |
| Standards | EU Directive 2011/65/EU; RoHS II Compliant |
| Wetted Material | Aluminium, Buna-N, Glass, K500 Nickel-Copper Alloy, Neoprene, Polycarbonate, Stainless Steel, Tungsten Carbide |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Panel-mount variable area flow meters for air and compressed gas measure the flow rate of media traveling through a system. Panel mount meters and sensors install perpendicular a pipe within a system or mounted on a panel board (with the proper fittings) alongside other instruments to provide several readings in one location.
Peringatan
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya - Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada websiteFeature
Flow Meter 2-2 Scfh Air W/Ss Valve Product Type Variable Area Flowmeter Flowmeter Type Variable Area Accuracy 4 Percent Connection Size 1/8 in Connection Type FNPT Compatible Flow Material Air Media Temperature - Maximum 130 Degrees F Media Temperature - Minimum Not Applicable Viscosity - Maximum Not Applicable Voltage - Maximum Not Applicable Housing Material Polycarbonate Rotor Material Not Applicable O-Ring Material Buna-N Neoprene Seal Material Not ApplicableUlasan Produk
