ASAHI Steam-Resistant EPDM Flange Gaskets
#Grup produk P109442738
Spesifikasi
| UNSPSC | 31181501 |
|---|---|
| Binder Material | None |
| Color | Black |
| FDA Approved | No |
| For Flange ANSI Class | 150 |
| Gasket Material | EPDM |
| Gasket Type | Full-Face Gasket |
| Hardness (Shore A) | 65 to 70 |
| Includes Mounting Hardware | No |
| Inner Ring | EPDM |
| Maximum Operating Pressure | 230 |
| Maximum Operating Temperature (°F) | 195 |
| Metal Detectable | No |
| Minimum Operating Temperature (°F) | -40 |
| Thickness (inch) | 5/64 |
| X-Ray Detectable | No |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

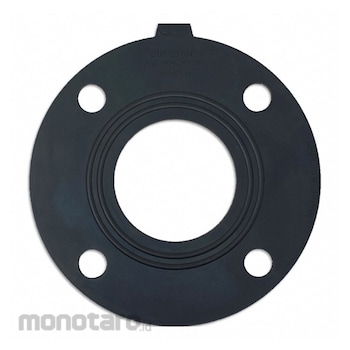

These EPDM full-face gaskets have two molded concentric inner rings that increase the gasket's radial strength so that fittings require less torque when tightening. Full-face gaskets cover the entire surface area of the flange and include holes to insert flange bolts and ease alignment. The gasket extends to the outside diameter of the flange which prevents dirt and contaminants from entering the joint. These gaskets are typically used with flat-face (FF) flange fittings so that the mating flange components fit flush against the gasket. Full-face gaskets require the joint to be disassembled to install.
Feature
Full Face Flange Gasket Gasket Material EPDM Insert Material EPDM For Pipe Size 3 in For Flange ANSI Class 150 Binder Material None Color Black Inside Diameter 3 1/2 in Minimum Operating Temperature -40 Degrees F Maximum Operating Temperature 195 Degrees F Outside Diameter 7 13/32 in Thickness 5/64 in Number of Bolt Holes 4 Bolt Hole Diameter 13/16 in Gasket Type Full-Face Gasket Metal Detectable Gasket No Included Fasteners Not Applicable Hardness Shore 65 to 70 AUlasan Produk
