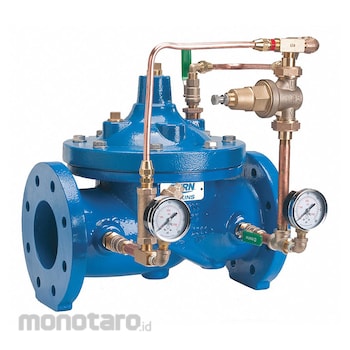

ZURN WILKINS Pressure Reducing Automatic Control Valves
#Grup produk P109434270
Spesifikasi
| UNSPSC | 40141609 |
|---|---|
| Body Material | Ductile Iron ASTM A536 |
| Coating | Epoxy Coated FDA Approved |
| Connection Type | Flanged |
| Cover Material | Ductile Iron |
| Elastomer Material | Buna N |
| Manufacturer Part Number | 3-ZW209 |
| Max. Continuous Flow Rate (gpm) | 460 |
| Max. Intermittent Flow Rate (gpm) | 600 |
| Maximum Fluid Temperature (°F) | 140 |
| Nut Material | 304 Stainless Steel |
| Operating pressure | 150 |
| Pilot Adjustment Range | 15 to 150 |
| Pipe Size (inch) | 3 |
| Port Size | 3x3 |
| Spring Material | 302 Stainless Steel |
| Standards | ANSI Class 150 Flanges |
| Stem Material | 304 Stainless Steel |
| Trim Material | 304 Stainless Steel |
| Valve Type | Pressure Reducing |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
These pressure-reducing control valves automatically reduce a fluctuating higher upstream pressure to a constant lower downstream pressure, regardless of varying flow rates.
Feature
Automatic Control Valve Valve Type Pressure Reducing Pipe Size 3 Connection Type Flanged Operating Pressure 150 psi Max Continuous Flow Rate 460 gpm Max Intermittent Flow Rate 600 gpm Port Size 3 x 3 Max Fluid Temp 140 Degrees F Pilot Adjustment Range 15 to 150 psi Body Material Ductile Iron ASTM A536 Cover Material Ductile Iron Elastomer Material Buna N Nut Material 304 Stainless Steel Spring Material 302 Stainless Steel Stem Material 304 Stainless SteelUlasan Produk
