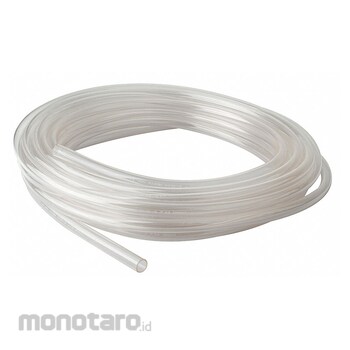

NORWELL Food & Beverage PVC Tubing
#Grup produk P109416371
Spesifikasi
| UNSPSC | 31231313 |
|---|---|
| Application | Water |
| Bend Radius (inch) | 2-7/8 |
| Clarity | Clear |
| Color | Clear |
| Does Not Contain | BPA; Phthalates |
| Elongation (%) | 425 |
| Features | Non Oxidizing and Non Contaminating; Slips Easily Over Fittings and is Easily Maneuvered Around Tight Bends; Smooth Inner Bore |
| Flexibility | Flexible |
| For Environment | Chemical |
| For Fluid Type | Beverages; Corrosive Chemicals |
| Hardness | Shore A 56 |
| Inside Diameter (inch) | 1/2 |
| Material | TPE |
| Material Trade Name | Tygon S3 |
| Material Trade Number | E-3603 |
| Maximum Operating Pressure (psi) | 12 @73°F |
| Maximum Operating Temperature (°F) | 165 |
| Outside Diameter (inch) | 5/8 |
| Overall Length (ft) | 50 |
| Reinforcement | Not Reinforced |
| Resistance Properties | Abrasion Resistant; Acid Resistant; Chemical Resistant; Crack Resistant; Flex-Fatigue Resistant; Tear Resistant |
| Standards | 10/2011/EU; 1907/2006/EC; 1935/2004/EC; ASTM D1004; ASTM D1599; ASTM D2240; ASTM D395 Method B; ASTM D412; ASTM D570; ASTM D746; ASTM D792; FDA 21 CFR 170-189; Japan Food Sanitation Law 370/1959; NSF 51 |
| Wall Thickness (inch) | 0.06 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ultrasoft PVC tubing is the softest and most flexible tubing for applications requiring food-safe tubing. Tubing easily twists and bends around curves, changes direction, and resists collapsing under pressure. This lighter weight tubing is not reinforced for use with lower pressures.
Feature
Tubing Application Water Color Clear Food Application Food and Beverage Hardness Shore A 56 Inside Diameter 1/2 in Material TPE Material Trade Name Tygon S3 Material Trade Number E-3603 Maximum Operating Pressure 12 psi @ 73 Degrees F Maximum Operating Temperature 165 Degrees F Outside Diameter 5/8 in Overall Length 50 ft PEX Type Not Applicable Resistance Properties Abrasion Resistant Acid Resistant Chemical Resistant Crack Resistant Flex-Fatigue Resistant Tear ResistantUlasan Produk
