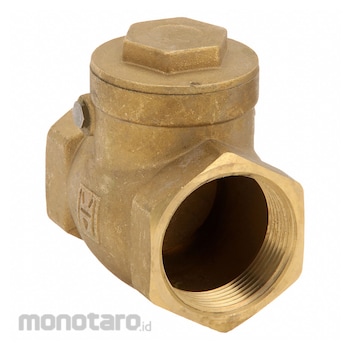

HAMMOND VALVE Check Valves
#Grup produk P109401892
Sebelum PPN:
Rp2.499.900 - Rp3.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| UNSPSC | 40141634 |
|---|---|
| Application - Valves | General Purpose |
| Body Material - Valves | Brass |
| Connection Type | FNPTxFNPT |
| Flow Design | Single |
| Full Flow - Valves | Yes |
| Item - Check Valves | Check Valve |
| Max. Steam Pressure - Valves | Not Rated |
| Max. Water Pressure - Valves (psi) | 200 @150°F |
| Mechanism and Body Design | Inline Swing |
| Minimum Valve Temperature (°F) | -20 |
| Mounting Orientation | Horizontal; Vertical |
| Seal Material | Brass |
| Seat Material | Brass |
| Standards | ASTM B584 |
| Valve Body Material | Brass |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
MERV 11 pocket air filters capture 80% to 85% of particles between 3 and 10 microns in size (such as dusting aids and cement dust). They also capture 50% to 65% of particles between 1 and 3 microns in size (lead dust, humidifier dust, coal dust, and nebulizer droplets) and less than 20% of particles between 0.30 and 1 micron in size (most smoke, sneeze nuclei, insecticide dust, copier toner, and face powder). They capture contaminants more efficiently than MERV 8 pocket air filters.
Feature
Item - Check Valves Check Valve Flow Design Single Mechanism and Body Design Inline Swing Body Material - Valves Brass Pipe or Tube Size 1 1/2 in Connection Type FNPT x FNPT Cracking Pressure 0.750 to 1.000 psi Mounting Orientation Horizontal Vertical Seal Material Brass Min Temp - Valves -20 Degrees F Max Water Pressure - Valves 200 psi @ 150 Degrees F Max Steam Pressure - Valves Not Rated Seat Material Brass Flow - Valves 76 gpm Full Flow - Valves YesUlasan Produk
