Electronic tension meter for hard to reach and limited access space applications.
Available in two models: ETB (Basic unit) and ETX (with memory and outputs)
Hand-held instrument with guide rollers up to max. 2000 m/min
Tension meter with measuring head as small as possible

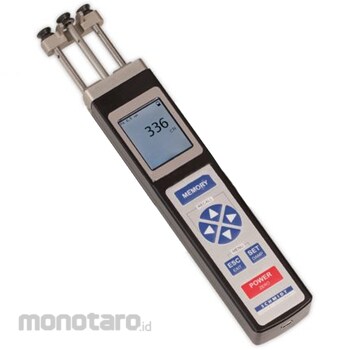

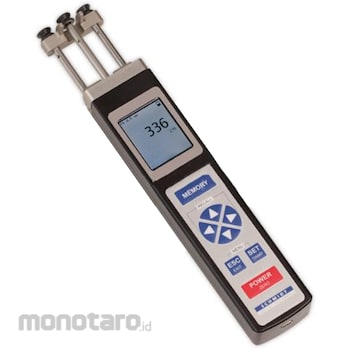

Schmidt Digital Tension Meter
#Grup produk P109299400
Spesifikasi
| Measuring Range (cN) | 0.3 – 100.0 |
|---|---|
| Resolution (cN) | 0.1 |
| Measuring Head Width (mm) | 24 |
| Accuracy | ±1 % full scale ±1 digit or better (typical ±0.5 % full scale) |
| Air Humidity | 85 % RH, max. |
| Display | Colour-TFT 128 x 160 |
| Housing Material | Aluminium |
| Measuring Principle | Strain gauge bridge |
| Measuring Roller Deflection (mm) | Max. 0.5 |
| Measuring Units | cN, g, N or lb, switchable |
| Memory | Last, average, MAX and MIN |
| Over Range | Approx. 10 % full scale, without accuracy guarantee |
| Overload Protection | 200 % full scale |
| Power Supply | LiPo accumulator (approx. 20 h continuous use, charging time approx. 3.5 h), USB AC adapter 100 – 240 V AC with 4 adapters (EU/USA/UK/AUS-NZ) |
| Sampling Rate (Hz) | Max. 200 (200 readings/sec) |
| Sampling Rate Internal (kHz) | approx. 1 |
| Signal Processing | Digital |
| Temperature Range (°C) | 10 – 45 |
