Auto-Maskin Engine Controller
#Grup produk P109247799
Kondisi Barang:
Bersertifikat SNI
Spesifikasi
| Supply Voltage (V) | 18-32 (DC) |
|---|---|
| Power Consumption (mA) | Max 700 (at 24VDC) |
| Protection Level | IP54 (Front Panel), IP30 (Back Panel) |
| Ambient Temperature (°C) | 0 to 70 (Operation), -20 to 70 (Storage) |
| Dimension (HxWxD) (mm) | 160x250x35 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

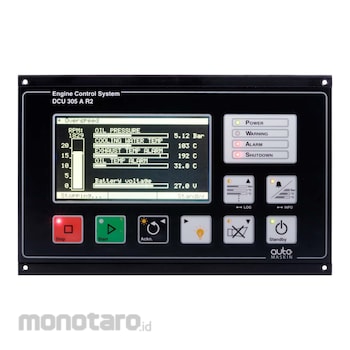

The DCU 305 A R2 is an electronic control unit for control and monitoring of diesel engines used as propulsion engines or gensets. Switches and senders from the engines are connected to the control unit on the wire terminal card RK-66 R2. Each project is unique, which is why the DCU 305A R2 is customized using a configuration tool for Windows, the Rudolf R2 software. Different expansion cards exist to further enhance the possibilities and flexibility.
Feature
- Flexible and configurable diesel engine control unit- IACS Certified by major classification societies
- Graphical and backlit display for user interaction
- Built-in backup of shutdown channels
- 12 switch inputs
- 5 analog inputs, 4-20mA (ch. 1 can be configured as 0-10V)
- Remote operation possible
- Supports 0-2 pickup speed sensors
- RS-232C communication port
- Log of all events
- Optional CAN interface
- Multi-language support
- 4 speed relays
- Start battery voltage monitoring and alarm setpoint
- RPM monitoring and overspeed setpoint
- 2 configurable inputs
- 2 configurable relay outputs; can be expanded with 6 or 14 relays.
