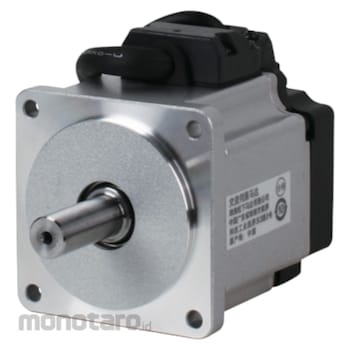

High inertia, Lead wire type
Family name : MINAS A6
MHMF Series
Panasonic Servo motor
#Grup produk P109241069
Spesifikasi
| Type | High inertia |
|---|---|
| Protection Class | IP65 |
| Voltage (V) | 200 |
| Continuous Stall Torque (N ⋅ m) | 2.86 |
| Flange Sq. Dimension (mm) | 80 |
| Max. Current (A (o-p)) | 18.8 |
| Maximum Rated Rotation Speed (rpm) | 6000 |
| Moment of iIertia of rotor ( x10-4 kg ⋅ m²) | 1.56 |
| Momentary Max. Peak Torque (N ⋅ m) | 8.36 |
| Motor lead-out configuration | Lead Wire |
| Output Rating (W) | 750 |
| Power Supply Capacity (kVA) | 1.8 |
| Rated Current (A (rms)) | 3.8 |
| Rated Rotation Speed (rpm) | 3000 |
| Rated Torque (N ⋅ m) | 2.39 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoderFeature
50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 VAC 100 V/200 V/400 V, 23 bit Absolute/Incremental
Battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz
