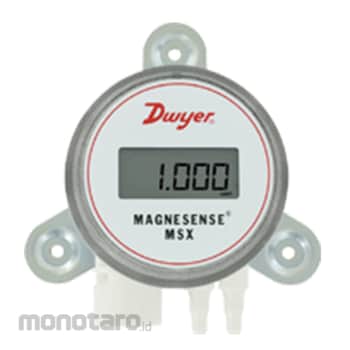

Dwyer Magnesense Differential Pressure Transmitter
#Grup produk P109124230
Sebelum PPN:
Rp3.999.900 - Rp5.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Wetted Materials | Consult Factory |
|---|---|
| Accuracy (FSO) | ±1% |
| Current Consumption (Max. Consumption) (mA) | 21 |
| Display (optional) | 4 Digit LCD |
| Electrical Entry (inch) | 1/2 NPS Thread |
| Loop Resistance Current Output Max. (O) | 0-1250 |
| Loop Resistance VoltageOutput Max. (kO) | Min. Load Resistance 1 |
| Mounting | Wall Mounting |
| Output Signals | 4-20 mA (2-wire); 0-10 V or 0-5 V selectable (3-wire) |
| Power Requirements | 10-36 VDC (2-wire), 17-36 VDC or isolated 216-33 VAC (3-wire) |
| Process Connections | 1/8inch, 3/16inch, 1/4inch, 5 mm, and 6 mm ID flexible tubing. |
| Temperature Limit (°C) | -20 to 70 |
| Zero and Span Adjustments | Digital Push-Button |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Series MSX Pro Magnesense Differential Pressure Transmitter is the professional differential pressure transmitter meeting stringent industry standards with innovative global product design. The device has exceptional stability for use in critical building performance applications with the popular versatility of our original Series MS2 Magnesense II transmitter. The MSX Pro simplifies the ordering process to deliver the desired configuration, which reduces product setup time. The MSX Pro transmitter can provide a linear pressure output or a linear velocity output with the square root extraction from the transmitter. Additional parameters have been included to expand the square root capability to calculate flow. Dual voltage and milliamp output signals can be used to provide control and equipment output signal verification.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
- Easily access the unit’s wiring via the flip-lid housing - Eliminates accidental damage to the unit during installation with the products innovative design shielding the electronics underneath the PCB
- Added security and protection from the tamper-resistant cover
- Protection from liquids and moisture near the cable egress point with the included liquid tight cable gland fitting
- Reduce installation time with quick and easy wiring via the included a toolless terminal block
- Add safety to variety of applications that need to meet municipal and building code standards with UL94 V-0 and plenum ratings
- Supports exacting measurement and control for critical environments through precision accuracy
Use
- High performance building applications for critical environments- Filter monitoring in air handler units
- Building pressure in pharmaceutical/semiconductor clean rooms
- Duct static pressure in commercial and specialized buildings
- Air velocity/flow in VAV systems
