Obtaining 16 patens of invention and 58 technical innovations, a brand-new product—JW4106S Optical Fiber Fusion Splicer is launched, thanks to 5 years of painstaking research of 28 engineers.
JW4106S implements industrial-grade CPU+FPGA structure of high-performance, completely fresh HD optical fiber microscope, imported high-speed motor and aluminum-magnesium alloy materials extensively. Compared with JW4106, our start product, JW4106S lowers the size by 38%, the weight by 52%, the power consumption by 57%, but improves the speed by 60%, the environment adaptability by 80% and the reliability (MTBF) by 200%. You can get unprecedented fusion splicing experience.

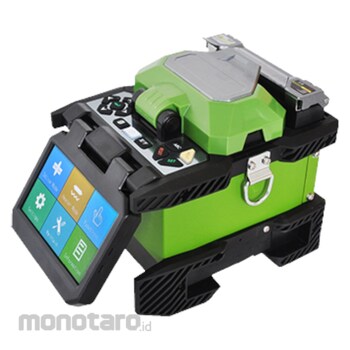

Joinwit Optical Fiber Fusion Splicer
#Grup produk P109121057
Spesifikasi
| Size (mm) | 120x130x154 |
|---|---|
| Material | Quartz Series |
| Core Quantity | Single-mode |
| Type | Single-mode, Multi-mode, Dispersion Shifted, Non-zero Dispersion Shifted And Erbium-doped Fibers |
| Cladding Diameter (µm) | 80-150 |
| Coating Diameter (mm) | 0.1-1.0, 2.0-3.0, 2.0*3.1 |
| Effective Heating Length (mm) | ≤60 |
| External DC Power Input (V) | 13.5±0.5 |
| Full Charging Time | Approx 2.5 Hours |
| Heating Time (s) | 10-255 (Settable As Required) |
| Input Current (A) | ≥4.4 (Socket Center Is Positive) |
| Lithium-ion Battery (V) | 11.1 (≥5.2Ah) |
| Maximum Wind Speed (m/s) | 15 |
| Operating Humidity | 95%RH And Below (Non-condensing) |
| Operating Temperature (°C) | -10 to +50 |
| Storage Humidity | 95%RH And Below (Non-condensing) |
| Storage Temperature (°C) | -40 to +80 |
| Temperature Limit (°C) | -20 to +55 |
| Typical Heating Time (s) | ≤25 (Standard 40mm Sleeve), ≤28 (Standard 60mm Sleeve) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Precise fiber core alignment, ultra-low fiber fusion splicing consumption 7s fast fusion splicing, 18s highly efficient heating.- 320 times image magnification, 5mm fusion splicing for fibers of ultra-short cutting length
- 300 groups of fusion splicing modes, 100 groups of heating modes
- 10000 groups of fusion records, 64 images storage Ceramic presser foot, ceramic V-block, all-in-one fixture
- Dual-direction splicing, automatic splicing, intelligent pyrocondensation
USB and SD card interfaces, U-disk automatic software upgrade
- Built-in modular lithium battery, supports 220 times of splicing and heating cycles
Use
- Maintenance in Telecom- Maintenance CATV
- Fiber Optic Lab Testing
- Other Fiber Optic Measurements
