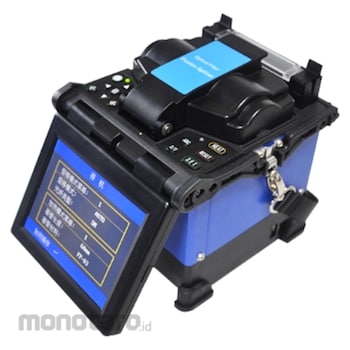

Joinwit High Precision Fusion Splicer
#Grup produk P109121039
Spesifikasi
| Size (mm) | 135x158x155 |
|---|---|
| Splicing Type | SM, MM, DS, NZDS |
| Splicing Loss (dB) | 0.02 (SM), 0.01 (MM), 0.04 (DS) |
| Return Loss (dB) | >60 |
| Splicing Mode | Manual, Half Auto, Auto |
| Fiber Alignment | Core to Core Alignment by PAS Technology |
| Applicable Fiber | Cable Indoor and 0.25mm,0.9mm Fiber, SC Connector (Option) |
| Battery Capacity (mAh) | 7200 |
| Battery Charging Time (hour) | 3 (Splicing and Charging at Same Time) |
| Battery Life | Cycling Charge 300-500 Times, Easy To Replace Battery |
| Cleaved Length (mm) | 8-16 |
| Electrodes Life | 3000, Easy To Replace Electrodes |
| Fiber Image/Magnification | 350/280 |
| Heat Shrinkable Sleeve (mm) | 60, 40 and Serials Heat Shrinkable Sleeve |
| Heating Time (s) | ≤30 |
| Power Source (W) | ≤20 |
| Splicing Time (s) | ≤9 |
| Tension Test (N) | Standard 2 (Option) |
| View Display (inch) | 5 (Digital High-quality LCD Screen) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The Fusion splicer is designed to splice many types of fiber by using core diameter aiming rationale, its shape is compact, light weight, which is suitable for field work. Operation is simple, fusion speed is high, and fusion loss is small.
