- Passive infra-red motion detector for ceiling installation in false ceilings
- Automatic motion and brightness-dependent control for lighting
- Daylight sensor mode for brightness-dependent control of the lighting, switchable via app
- Mixed light measurement
- Operation as fully automatic device
- Brightness switching value configurable, teach-in function
- Pulse function for staircase light time switch
- Time delay configurable
- Detection sensitivity configurable
- Test mode for checking function and detection area
- Ready for immediate use due to factory presetting (Brightness switching value 300 lux, Time delay 10 min.)
- One of these optional remote controls is required for changing the values and attitudes:
- Management remote control SendoPro
- Installation remote control theSenda P
- Optional user remote control: theSenda S

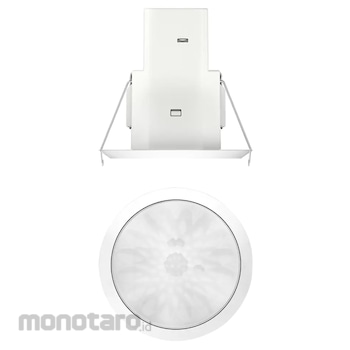

Theben Motion Sensor the Mova Series
#Grup produk P108910153
Spesifikasi
| Ambient Temperature (°C) | -15 to 50 |
|---|---|
| Color | White |
| Compact And Flourescent Lamps (VA) | 1150 (cos f = 0.5) |
| Detection Angle (°) | 360 |
| Detection Range (m²) | 50 (ø8m/360°) |
| Frequency (Hz) | 50 |
| Impact Resistance | IK04 |
| Incandescent/Halogen Lamp Load (W) | 2300 |
| Inrush Current (A/µs) | Max. 400/200 |
| Installation Height (m) | 2 to 4 |
| Installation Type | Ceiling installation |
| LED Lamp < 2W (W) | 25 |
| LED Lamp > 8W (W) | 250 |
| Lamps | Incandescent/Halogen Lamps, Fluorescent Lamps, Energy Saving Lamps, LEDs |
| Light Measurement | Mixed Light Measurement |
| Operating Voltage (V AC) | 230 |
| Power Consumption (W) | 0.5 |
| Setting Range Brightness (lx) | 30 to 3000 |
| Type of Connection | Spring Terminals |
| Type of Protection | IP 54 (When Fitted) |
