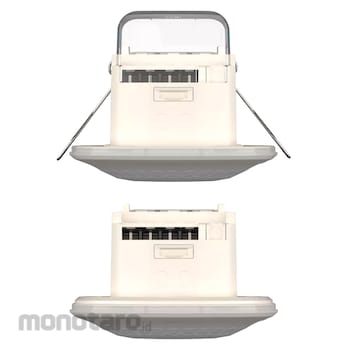

- Passive infrared presence detector, ceiling installation as supplied or flush-mounting by means of removable springs/protection cap and enclosed mounting frame
- Extension of the detection area by parallel switching, a maximum of 8 detectors can be connected in parallel
- Networking with wall detector theMura Slave possible
- Connection option for push-button for manual switching
- Operation as fully or semi-automatic possible
- One directional brightness measurement (mixed light measurement)
- Teach-in function, pulse function, test function, staircase lighting function
- Ready for operation immediately due to factory presetting
- Changes of values and settings are possible with potentiometers and with one of these optional remote controls:
- App/universal remote control theSenda B
- Service remote control theSenda P
- Optional user remote control for manual override theSenda S/theSenda B
- Restriction of the detection range possible
Theben Motion Sensor Luxa Series
#Grup produk P108910135
Spesifikasi
| Ambient Temperature (°C) | -25 to 55 |
|---|---|
| Color | White |
| Detection Angle (°) | 360 |
| Detection Range (m²) | 113 (ø12m/360°) |
| Frequency (Hz) | 50 |
| Incandescent/Halogen Lamp Load (W) | 2300 |
| Inrush Current (A/µs) | Max. 500/200 |
| Installation Height (m) | 2.5 to 3.5 |
| Installation Type | Ceiling installation |
| LED Lamp 2-8W (W) | 400 |
| LED Lamp > 8W (W) | 400 |
| Lamps | Incandescent/Halogen Lamps, Fluorescent Lamps, Energy Saving Lamps, LEDs |
| Light Measurement | Mixed Light Measurement |
| Light Switch-off Delay (s-minute) | 15-30 |
| Operating Voltage (V AC) | 230 |
| Power Consumption Standby Mode (W) | ca. 0.5 |
| Remote Controlled | Yes |
| Setting Range Brightness (lx) | 5 to 1000 |
| Switching Output | Light |
| Type of Protection | IP 54 (When Fitted) |
