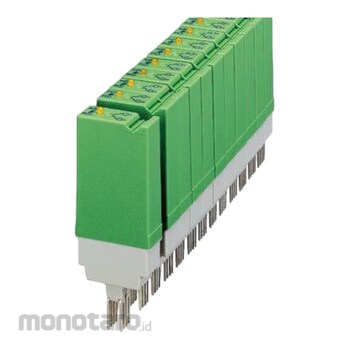

Phoenix Contact Solid-State Relays
#Grup produk P108896817
Spesifikasi
| Product Type | Single solid-state relay |
|---|---|
| Width (mm) | 14.6 |
| Height (mm) | 33 |
| Storage/Transport Ambient Temperature (°C) | -20 to 70 |
| Depth (mm) | 66.5 |
| Design Of Digital Output | Electronic |
| Input Voltage Range (V) | 21.6 DC to 26.4 DC |
| Input Voltage Range In Reference To UN | 0.9 to 1.1 |
| Limiting Continuous Current (mA) | 100 |
| Mounting Position | Any |
| Nominal Input Voltage UN (V) | 24 DC |
| Operating Ambient Temperature (°C) | -20 to 60 |
| Output Circuit | 2-conductor, floating |
| Output Voltage Range (V) | 8 DC to 48 DC |
| Status Display | Yellow LED |
| Transmission Frequency (Hz) | 500 |
| Typical Input Current at UN (mA) | 9 |
| Typical Response Time (µs) | 20 |
| Typical Turn-Off Time (µs) | 100 |
| Voltage Drop At Max. Limiting Continuous Current (V) | 0.9 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Plug-in input solid-state relay, with LED and protective circuit in input and output circuits, input: 24 V DC, output: 8 - 48 V DC/max. 100 mA, can be plugged into basic terminal blocks
