Phoenix Contact Coil
#Grup produk P108894475
Sebelum PPN:
Rp3.799.900 - Rp4.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Product Type | Rogowski coil |
|---|---|
| Storage/Transport Ambient Temperature (°C) | -40 to 80 (Measuring coil) |
| Housing Material | PC |
| Altitude (m) | < 2000 |
| Permissible Humidity (Operation) (%) | 5 to 95 (non-condensing) |
| Basic Accuracy (%) | <± 0.2 |
| Coil Material | Elastollan |
| Frequency Measuring Range (Hz) | 40 to 20000 |
| Insulation | Double insulation |
| Linearity error (%) | < 0.1 |
| Measuring Coil Degree of Protection | IP67 (not assessed by UL) |
| Operating Ambient Temperature (°C) | -30 to 80 (Measuring coil) |
| Output Signal (mV) | 100 (no load, at 1,000 A) at 50 Hz |
| Pollution Degree | 2 |
| Position Error (%) | <± 0.1 (typical) |
| Test Voltage (kV) | 10.45 DC (60 s) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

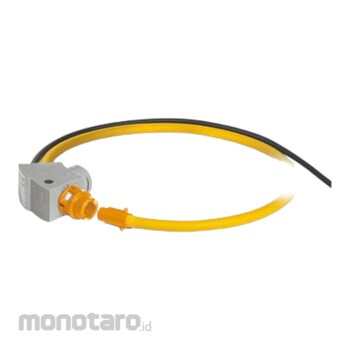

Rogowski coil, The Rogowski coil measures the AC current of rails and power lines.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
