Spesifikasi
Accuracy | ±0.2% of F.S. |
---|---|
Display Method | PV display part: 7-segment 5-digit, Parameter display part: 16-segment 8-digit, Bar LED: 52 |
Display Range | -9999 to 99999 |
Explosion Class | Ex d IIC T6 |
Humidity Level | 0-85%RH, enclosed space: 0-85%RH |
Material | Body: aluminum (AlDc.8S), cover O-Ring: buna N, diaphragm: stainless steel 316, connections: stainless steel 316 |
Environment Temperature Level (°C) | -20 to 70, enclosed space: -40 to 85 |
Measured Material | Vapor, liquid, fluid (except corrosive environment of stainless steel 316) |
Power Supply (V) | 9-45 DC |
Standard Protection | IP67 (IEC Standard) |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description

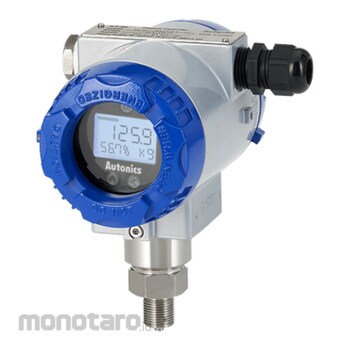

The KT-302H series explosion-proof pressure transmitters can measure pressure from 0.35 kPa to 35 MPa. The display can be rotated 330° and the backlit display offers high visibility even in dark environments.
