Phoenix Contact Solid State Relays
#Grup produk P108419025
Spesifikasi
| Relay Mounting | DIN Rail |
|---|---|
| Contact Configuration | SPST-NO |
| Load current (A) | 3 |
| Operating Voltage Max (VDC) | 33 |
| Operating Voltage Min (VDC) | 3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

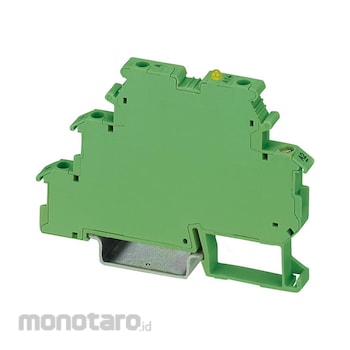

The 2940207 is a Solid State Relay Terminal Block with zero voltage switching mode and screw terminals. This DIN-rail-mount terminal block features EB-DIK insertion bridges, protection against polarity reversal and free-wheeling diode, integrated output protective circuit and input circuit. Labelling and mounting with user-friendly modular terminal blocks.
Feature
Actuator versionWear-free switching
Green LED status indicator
2.5mm² Maximum conductor cross section
<=0.9V Maximum voltage drop
10mW Power dissipation
20µs Response and 200µs turn-off typical time
-20 to 60°C Ambient operating temperature range
Use
IndustrialUlasan Produk
