Description

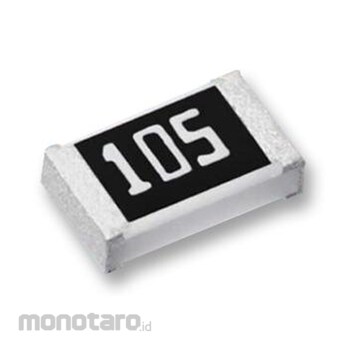

The Panasonic ERA 2A series resistors are highly reliable, automotive grade metal film chip resistors based on thin film technology. The resistance range includes E24 and E96 decade values from 10 ohm to 1Mohm. ERA series metal thin film chip resistors have small resistance tolerance and temperature coefficient of resistance, low current noise and excellent linearity. These resistors are stable at high temperature and humidity.
Feature
EIA 0201, 0402, 0603, 0805, 1206 case sizes availableAutomotive grade AEC-Q200 compliant
Meets IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B standards
85°C 85% RH rated load
Maximum power rating of 250mW
Available in ±0.05%, ±0.1%, ±0.25% and ±0.5% tolerance
±10, ±15, ±25, ±50 and ±100ppm/°C TCR values available
Operating temperature range -55°C to 155°C
