Identification of cores :
- Twin Cores : Light-Blue, Black
- Three Cores :
System I : Green with yellow stripe (G/Y), Blue, Brown
System O : Brown, Black, Grey
- Four Cores :
System I : Green with yellow stripe (G/Y), Brown, Black, Grey
System O : Blue, Brown, Black, Grey
- Five Cores :
System I : Green with yellow stripe (G/Y) , Blue, Brown, Black, Grey
System O : Blue, Brown, Black, Grey, Black

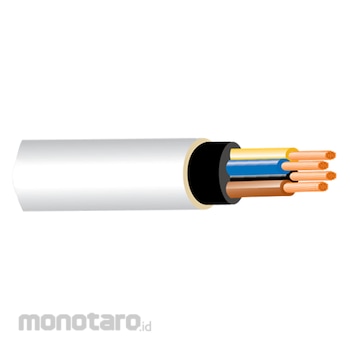

Construction:
1. Annealed Copper Conductor
2. Extruded PVC Insulated
3. Extruded PVC Outer Sheathed
Symbol : NYM
- Size Ranged :
2 x 1.5 ... 35mm²
3 x 1.5 ... 35mm²
4 x 1.5 ... 35mm²
5 x 1.5 ... 35mm²
- Applicable Standard : Rated Voltage : 300/500 Volt
Specification : SPLN 42-2 : 1992, SNI 04-6629.4 2006, IEC 60227-4 IEC 10
Jembo Thermoplastic Building Wire NYM Series Cable (Kabel)
#Grup produk P108328097
Sebelum PPN:
Rp449.900 - Rp22.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| SNI License | Yes |
|---|---|
| SNI Number | 006.001.002.037.24 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUse
- Permanent installation - In conduit under plaster or exposed installation - In dry locationUlasan Produk
