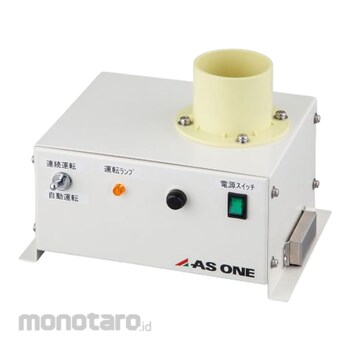

AS ONE Exhaust auxiliary unit
#Grup produk P108075557
Spesifikasi
| Main Body Material | Steel (painting) |
|---|---|
| Power Supply | AC100V 50/60 Hz 0.08 A |
| Maximum Static Pressure (50/60 Hz) (Pa) | 53/76 |
| Duct Flange Diameter (mm) | 65 |
| Size Diameter (mm) | 205x165x198 |
| Air Volume at 50/60Hz (m³/minute) | 0.36/0.44 |
| Mounting | magnet attraction |
| Package Size (mm) | 215x240x180 |
| Power Supply Cable Length (m) | 2 (3P Plug) |
| Surface Temperature of Installation Area (°C) | up to 90 |
| Switching Modes | Continuous Operation/Automatic Operation |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsFeature
It assists the exhaust from the measuring hole and promotes the exhaust of steam and oil smoke in the chamber. Installing ducts (sold separately) makes it easier to direct exhaust to drafts and ventilation fans. The automatic operation mode automatically starts exhausting when the temperature inside the unit rises.Ulasan Produk
