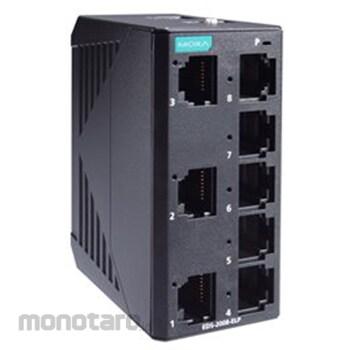

The EDS-2008-ELP series of industrial Ethernet switches have eight 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2008-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel..
The EDS-2008-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2008-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS-2008-ELP Series has a standard operating temperature range of -10 to 60°C.
10/100BaseT(X) Ports (RJ45 Connector)
- 8
- Full/Half duplex mode
- Auto MDI/MDI-X connection
- Auto negotiation speed
Standards
- IEEE 802.3 for 10BaseT
- IEEE 802.1p for Class of Service
- IEEE 802.3u for 100BaseT(X)
- IEEE 802.3x for flow control
MOXA Entry-Level Unmanaged Ethernet Switches
#Grup produk P107649540
Spesifikasi
| No. of Ports | 8 |
|---|---|
| Processing Type | Store and Forward |
| MAC Table Size (K) | 2 |
| Packet Buffer Size (kbits) | 768 |
| Ethernet Interface | Quality of Service (QoS), Broadcast Storm Protection (BSP) |
| Connection | 1 removable 3-contact terminal block(s) |
| Ambient Relative Humidity (%) | 5 to 95 (non-condensing) |
| Dimensions (mm) | 36 x 81 x 65 |
| Housing | Plastic |
| Input Current (A) | 0.067 @ 24 VDC |
| Input Voltage (VDC) | 12/24/48 VDC |
| Installation | DIN-rail mounting, Wall mounting (with optional kit) |
| Operating Temperature (°C) | -10 to 60 |
| Operating Voltage (V DC) | 9.6 to 60 |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | Supported |
| Safety | UL 61010-2-201, EN 62368-1 (LVD) |
| Storage Temperature (°C) | -40 to 85 (Package Included) |
