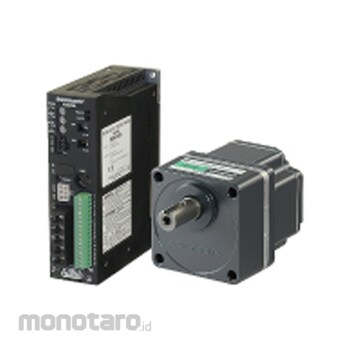

Orientalmotor Brushless DC Motor BLE512S30S Series AC Type
#Grup produk P107598547
Spesifikasi
| Mounting Angle Dimension (mm) | 90 |
|---|---|
| Allowable Moment of Inertia J (kg.m²) | 1600x10ˉ⁴ |
| Rotation Speed Setting Method | Depending on one of the following: Setting by internal speed potentiometer;Setting by external speed potentiometer (accessory): PAVR-20KZ (20kΩ, 1/4W);Setting by external DC voltage: 0 to 5 V DC or 0 to 10 V DC switching, 1 mA or more |
| Rotor Moment of Inertia J (kg.m²) | 0.61x10ˉ⁴ |
| Acceleration/Deceleration Time (s) | Setting by acceleration/deceleration time potentiometer: 0.2 to 15 (at 3000r/min no load) |
| Allowable Torque (N m) | 10.3 (3.3-100r/min) ; 7.7 (133r/min) |
| Electromagnetic Brake | None |
| Input Power Frequency (Hz) | 50/60 |
| Output Rating (W) | 120 |
| Power Input Frequency Tolerance | ±5% |
| Power Input Maximum Input Current (A) | 2.5 |
| Power Input Rated Input Current (A) | 1.2 |
| Power Input Rated Voltage (V) | Three-phase 200-240 |
| Power Input Voltage Tolerance | -15 to 10% |
| Rated Rotation Speed Motor Shaft (rpm) | 3000 |
| Rated Torque Motor Shaft (N m) | 0.4 |
| Reduction Ratio | 30 |
| Shaft/Gear Type | Combination type parallel shaft gearhead |
| Speed Control Range (rpm) | 3.3-133 |
| Starting Torque Motor Shaft (N m) | 0.8 |
