For combination with Symo cylinder removable core
Order reference
Only use Premium 20 cylinder cores with restricted rotation and direction (DIN right) when using pin tumbler cylinder cores.
Additional information attributes
The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key. Additions and modifications can be implemented easily at any time by exchanging the cores.
Installation reference
The cylinder cores adapt flexibly to the locking plan requirements and can be installed on site. The cylinder cores are inserted without tools using the key. Additions and modifications can be implemented easily at any time by exchanging the cores.

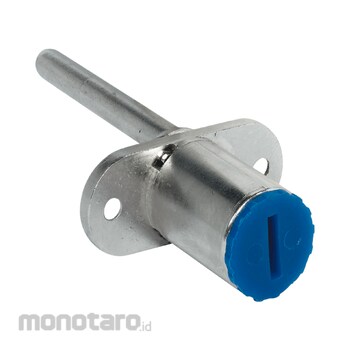

HAFELE Central Rotary Lock Case
#Grup produk P107535098
Spesifikasi
| Closure Travel (°) | 180 |
|---|---|
| Travel (mm) | 17 |
| Color/Finish | Nickel plated, Nickel plated |
| Area Of Application | For cylinder cores that are inserted from the front on site |
| Version | With mounting plate on two sides, with lifting pin |
| Material | Zinc alloy |
| Cylinder Housing Length (mm) | 22 |
| Cylinder shape | Prepared for round cylinder |
| Cylinder Ø (mm) | 18 |
| Installation | For installation in fixed front panel; for screw fixing |
| With Key | No |
