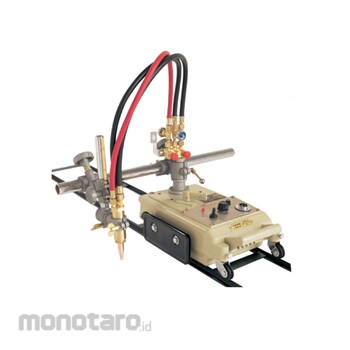

Wintech Straight Line Gas Cutting Machine
#Grup produk P107151984
Spesifikasi
| Dimension of Machine (mm) | 435x210x240 |
|---|---|
| Frequency (Hz) | ±10% 50 |
| Input Voltage (V) | AC 220 |
| Speed Control | Silicon Control |
| Cutting Speed (mm/minute) | 50-750 |
| Cutting Circle Diameter (mm) | 200-Ø2000 |
| Cutting Thickness (mm) | 5-100 |
| Groove Angle (degree) | 0-45 |
| Motor Speed (rpm) | 4200 |
| Power (W) | 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Tip G02 (acetylene), G03 (propane)
Feature
1. Hose:The three hoses are used individually for fuel gas, preheating oxygen and cutting oxygen2. Cross hand wheel:To adjust the horizontal distance of torch
3. Cross gear rack
4. Vertical adjusting hand wheel of torch
5. Tip
6. Thermal baffle: To prevent the heat diffusing into the inner of machine
7. Fuel gas two-port valve:To adjust gas-flow rate
8. Gas distributor
9. Clutch hand knob: “STOP” is parting. “START”is combination
10. Body
11. Speed controller : Increase the speed from “0”to“10”Decease speed from “10” to “0”
12. Outlet
13. Universal wheel
