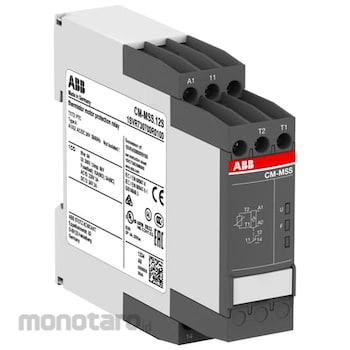

CM-MSS.12S Therm. motor protec. relay 1c/o, 24VAC/DC
The CM-MSS.12S belongs to the CM-MSS thermistor motor protection relay range. It operates with a rated control supply voltage of 24 V AC/DC and has a 1 c/o (SPDT) output with contacts rated at 250 V / 4 A. It features one sensor circuit to monitor PTC temperature sensors and works according to the closed-circuit principle. The relay will be reset automatically after the failure has been removed. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
ABB Thermistor Motor Protection Relay
#Grup produk P106984570
Sebelum PPN:
Rp1.999.900 - Rp3.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connecting Capacity (mm²) | Flexible 1x0.5-2.5 , Flexible 2x0.5-1.5 , Rigid 1x0.5-4 , Rigid 2x0.5-2.5 |
|---|---|
| Degree of Protection | Housing IP50, Terminals IP20 |
| Electrical Durability (cycle) | AC-12 100000 |
| Minimum Switching Capacity (V/mA) | 24/10 |
| Mounting on DIN Rail (mm) | TH35-15 (35x15 Mounting Rail) acc. to IEC 60715, TH35-7.5 (35x7.5 Mounting Rail) acc. to IEC 60715 |
| Mounting Position | 1-6 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Product Depth/Length (mm) | 103.7 |
| Product Height (mm) | 85.6 |
| Product Width (mm) | 22.5 |
| Rated Impulse with Stand Voltage (kV) | Output Circuit 1 / Output Circuit 2 4, Output Circuit 4 |
| Rated Operational Current AC-12 (A) | (230V) 4 |
| Rated Operational Current AC-15 (A) | (230V) 3 |
| Rated Operational Current DC-12 (A) | (24V) 4 |
