Realizes humidity detection accuracy of ± 3% in a compact size. Uses a polymer resistance sensor with excellent durability for temperature / humidity control in combination with a controller.
Compact and lightweight.

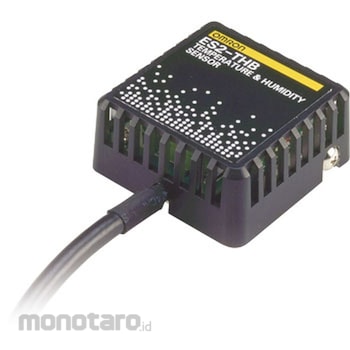

OMRON Temperature And Humidity Sensor ES2-HB-N/THB-N
#Grup produk P106932197
Sebelum PPN:
Rp3.899.900 - Rp8.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Protection Class | IP20 |
|---|---|
| Output | Humidity / DC1-5V (for humidity 0-100%), load impedance 100kΩ or more (When connecting the E5CC / E5EC / E5AC series, use 1+: + 1 connection.) |
| Current Consumption (mA) | less than 4 |
| Cable Length (m) | (Transmission) 5 |
| Operating Humidity Range | 95% or less relative humidity |
| Allowable Voltage Fluctuation (%) | 85 to 110 of power supply voltage |
| Humidity Measurement Accuracy (%) | ±3 (25℃, 40 to 80%) |
| Humidity Measurement Range (%) | 20 to 95 |
| Humidity Sensor | Polymer resistance type |
| Power Supply Voltage (V) | DC24 |
| Storage Temperature Range (°C) | -20 to +60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Humidity sensor module (ES2-MN type) is for replacement. One unit is included with ES2-HB-N / -THB-N. Be sure to attach the included humidity sensor module when using the product. If the module is not installed, or if it is not fully installed, the humidity output will be about DC5.5V.
