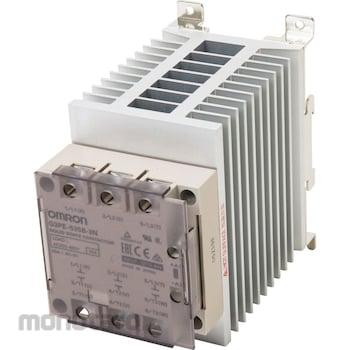

OMRON Solid State Contactor For Heater G3PE
#Grup produk P106930311
Sebelum PPN:
Rp3.499.900 - Rp5.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Operation Indicator Lamp | Yes (Yellow) |
|---|---|
| Storage Temperature Range (°C) | -30 to 100 (with no icing or condensation) |
| Load voltage (V) | AC 180-528 (50/60Hz) |
| Return Time (ms) | 1/2 cycle of load power supply + 1 or less |
| Input Current (mA) | 7 or less |
| Insulation Resistance (MΩ) | 100 or more (at 500V mega) |
| Leakage Current (mA) | 10 or less (at 200 VAC) |
| Number of Phases | Three-phase |
| Operating Ambient Temperature (°C) | -30 to 80 (with no icing or condensation) |
| Operating Time (ms) | 1/2 cycle of load power supply + 1 or less |
| Operating Voltage (V) | DC 9.6 or less |
| Rated Load Voltage (V) | AC 200-480 (50/60Hz) |
| Rated Voltage (V) | DC 12-24 |
| Return Voltage (V) | DC 1.0 or more |
| Shock Resistance (m/s²) | 294 (DIN rail mounting) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Solid-state contactor for small, slim type three-phase heater with integrated heatsink
