Power MOS FET relay with the same shape as the G2R.
For both AC and DC, 1A load can be opened and closed.
AC240V or DC100V, 1A load switching is possible.
Leakage current of 10µA or less when output is open circuit.
Withstand voltage AC2500V between input and output.
Built-in input resistance and overvoltage absorption circuit.
AC full-wave rectification load and half-wave rectification load can be opened and closed.
RoHS compliant.

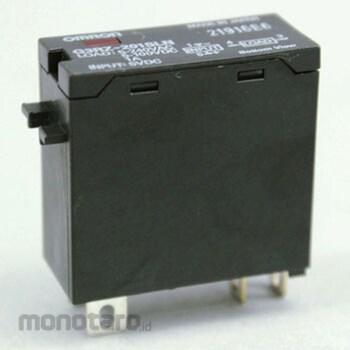

OMRON Power MOS FET Relay G3RZ
#Grup produk P106915288
Spesifikasi
| Suitable Load of Output | 1.0A AC5 to 240V, DC5 to 100V |
|---|---|
| Ambient Relative Humidity (RH) | 45 to 85 |
| Equipped with / without Zero Cross Function | None |
| Return Voltage (V) | DC1 or more |
| Type | Power relay |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Leakage Current (mA) | Open circuit : 1x102 or less (at 125 VDC), 0.1 or less (at 200 VAC) |
| Load voltage (V) | AC3 to 264, DC3 to 125 |
| Operating Ambient Temperature (°C) | -30 to +85 (with no icing or condensation) |
| Operating Time (ms) | 6 or less |
| Operation Indicator Lamp | Included |
| Rated Load Voltage (V) | AC5 to 240, DC5 to 100 |
| Storage Temperature Range (°C) | -30 to +100 (with no icing or condensation) |
| Terminal Shape | Plug-in terminal |
| Type of Insulation | Photo-bol coupler |
