World's smallest class safety limit switch Limit switch (4 contacts) with the world's smallest direct opening mechanism.
High sensitivity safety limit switch.
The built-in switches are available in 2-contact / 4-contact types.
Protection structure IP67.
Acquired UL, EN (TUV), and CCC standards.

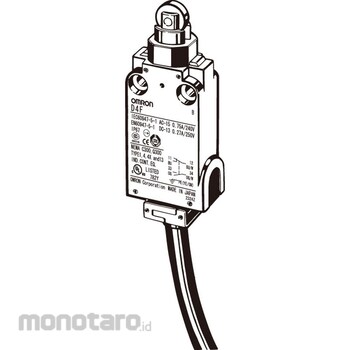

OMRON Compact Safety Limit Switch D4F
#Grup produk P106892677
Sebelum PPN:
Rp1.099.900 - Rp2.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Rated Frequency (Hz) | 50/60 |
|---|---|
| Allowable Operation Frequency (times/minute) | Mechanical: 120, Electrical: 30 |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Allowable Operating Speed (mm-m/s) | 1-0.5 |
| Conditional Short Circuit Current (A) | 100 (EN60947-5-1) |
| Contact Spacing (mm) | Minimum 2x2 |
| Insulation Resistance (MΩ) | 100 or more (at 500 VDC) between homopolar and heteropolar terminals, between charged metal parts and ground, between each terminal and non-charged metal parts |
| Minimum Applicable Load (V-mA) | 24 DC-4 resistance load, 4 circuits (N level reference value) |
| Open thermal Current (A) | 2.5 (EN60947-5-1) |
| Operating Ambient Temperature (°C) | -30 to 70 (but no freezing) |
| Shock Resistance Destruction (m/s²) | 1000 or more |
| Shock Resistance Malfunction (m/s²) | 300 or more |
