Pull-reset type added to the D4N series In addition to the conventional 1NC / 1NO and 2NC series, the contact configuration includes 2NC / 1NO and 3NC 3-contact types.
Also released M12 connector type that saves labor and facilitates replacement work.
Standardly adopted Au clad contact with high contact reliability. Applicable to both general load and minute load.
Compatible with EN115, EN81-1, and EN81-2.
Acquired UL, EN (TUV), and CCC standards.

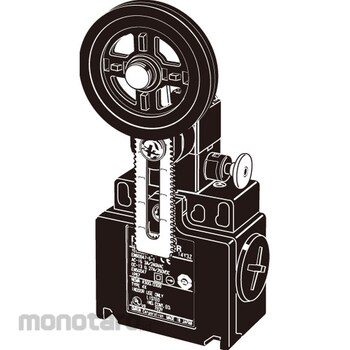

OMRON Compact Pull Reset Safety Limit Switch D4N-R
#Grup produk P106892552
Spesifikasi
| Rated Frequency (Hz) | 50/60 |
|---|---|
| Allowable Operation Frequency (times/minute) | Up to 30 |
| Allowable Operating Speed (mm/s) | 1 to 500 (D4N-1A20R) |
| Conditional Short Circuit Current (A) | 100 (EN60947-5-1) |
| Contact Resistance (miliΩ) | 25 or less |
| Electrical Durability (operations) | 500K or more (250 VAC, 3 A, resistance load), 300K or more (250 VAC, 10 A, resistance load) |
| Impact Resistance Durability (m/s²) | 1000 |
| Mechanical Durability (times) | 1million or more |
| Minimum Applicable Load (V-mA) | DC 5-1 resistance load (N level reference value) |
| Open thermal Current (A) | 10 (EN60947-5-1) |
| Operating Ambient Temperature (°C) | -30 to 70 (but no freezing) |
| Pollution Degree (Environment to Use) | Pollution degree 3 (EN60947-5-1) |
| Shock Resistance Malfunction (m/s²) | 300 |
