- meet ISO 2954-2012 Measurement
- Hi range:10Hz-5KHz.
Electrical Specifications:
Accurate environmental conditions are: 23°C ± 3°C and RH <80%

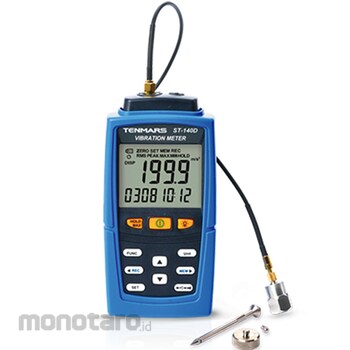

Tenmars Vibration Meter
#Grup produk P106783908
Sebelum PPN:
Rp30.999.900 - Rp46.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Measurement Range | Acceleration (RMS,PEAK,MAX HOLD) : 0.5~199.9 m/S², 0.05~20.39g, 2-656 ft/S²; Velocity VEL (RMS, PEAK, MAX HOLD) : 0.5~199.9mm/s, 0.05~19.99cm/s, 0.02~7.87inch/s; Displacement DISP (P-P, MAX HOLD P-P) : 0.005~1.999 mm, 0.002~0.078 inch |
|---|---|
| Resolution | Acceleration (RMS,PEAK,MAX HOLD) : 0.1 m/s², 0.01g, 1 ft/S²; Velocity VEL (RMS, PEAK, MAX HOLD) : 0.1 mm/s, 0.01cm/s, 0.01inch/s; Displacement DISP (P-P, MAX HOLD P-P) : 0.001 mm, 0.001 inch |
| Accuracy | Acceleration (RMS,PEAK,MAX HOLD) : ±(5%+5d)@79.4Hz and 158Hz; Velocity VEL (RMS, PEAK, MAX HOLD) : ± (5%+5d)@79.4Hz and 158Hz; Displacement DISP (P-P, MAX HOLD P-P) : ± (5%+5d)@79.4Hz and 158Hz |
| Calibration Point | Acceleration (RMS,PEAK,MAX HOLD) : 50m/S² (158Hz); Velocity VEL (RMS, PEAK, MAX HOLD) : 50m/s (158Hz); Displacement DISP (P-P, MAX HOLD P-P) : 0.141mm (158Hz) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- The maximum display of the LCD is 1999.- Measurement item: VEL (velocity) / ACC (acceleration) / DISP (displacement).
- Function: Acceleration (RMS, PEAK, MAX HOLD, HOLD).
- Velocity (RMS, PEAK, MAX HOLD, HOLD).
- Displacement (P-P, MAX HOLD P-P, HOLD).
- Unit: Acceleration: m/s², g, ft/s². Velocity: mm/s, cm/s, inch/s. Displacement: mm, inch.
- Vibration sensor with magnetic adapter on1.2M (47.2) cable
- Frequency: Lo range :10Hz~1KHz meets ISO 2954 measurement; Hi range : 10Hz~5KHz
- Overload display: "OL".
- Offset adjustment used for zero function
- Auto power (15 minutes) and disable auto power off.
- Resolution:0.1m/s²,0.01g,1ft/s²,0.1mm/s,0.01cm/s,0.01inch/s,0.001mm,0.001inch
- High sensitivity probe head for accurate measurement.
- Provides long and short probe head.
- Frequency LO range: 10Hz-1KHz
- Stores 99records manually.(ST-140)
- Data logger with 9999 records capacity.(ST-140D)
- USB interface.(ST-140D)
Use
This meter measures the vibrations of the rotating and reciprocating machines, as well as bearing damage, measurement items are acceleration, speed, displacement, which can check if the machine is to be repaired or upgrade.Ulasan Produk
