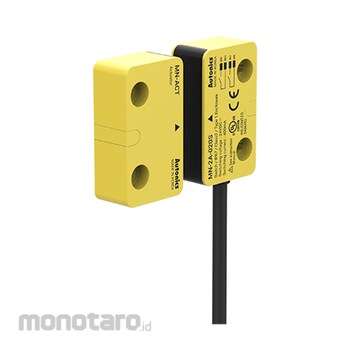

Autonics Magnetic Non-contact Switches MN Series
#Grup produk P106666920
Kondisi Barang:
Authorized Partner
Spesifikasi
| Certification | CE |
|---|---|
| Temperature Level (°C) | -10 to 55, enclosed space: -20 to 60 |
| Vibration (mm) | 1.0 amplitude at frequencies from 10-55Hz (for 1minute) in each X, Y, Z direction for 2h |
| Malfunction Vibration (mm) | 1.0 amplitude at frequency of 10-55Hz (for 1min) in each X, Y, Z direction for 10min |
| Material | Body/CAP: PC |
| Life Expectancy (times) | ≥ 1juta (dengan beban rendah) |
| Off→On Operating Distance (mm) | ≥ 5 |
| On→Off Operating Distance (mm) | ≤15 |
| Switching Voltage (V) | ≤ 24 DC |
| switching Current (mA) | ≤ 400 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The MN series magnetic non-contact switches utilize magnetic type detection to monitor opening and closing of actuator doors. The switches can be installed vertically or horizontally, and can also be installed from both sides.
