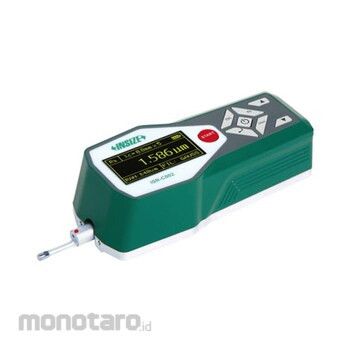

Insize Roughness Tester
#Grup produk P106623688
Spesifikasi
| Parameters | Ra, Rz, Rq, Rv, Rp, RS, R3z, R3y, Rt, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry (JIS), Rmax |
|---|---|
| Range (µm) | 160 |
| Accuracy (%) | ±10 |
| Type | Inductive (Probe) |
| Angle (°) | 90 |
| Cut Off (mm) | 0.25/0.8/2.5 |
| Dimensions (mm) | 141x55x40 (LxWxH) |
| Measuring Force (mN) | 4 |
| Measuring Unit | µm/µin |
| Memory | 100 Measurement Results |
| Moving Speed (mm/s) | 0.5, 1 |
| Number of Cut-off | 1 to 5 |
| Output | Bluetooth and USB |
| Power | Built-in Rechargeable Battery |
| Stylus Material | Diamond |
| Stylus Radius (µm) | 5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- Roughness tester can be operated by mobile phones (only android system) or computer; - Data can be sent to excel by connecting to computers via bluetooth or SPC cable; - Support bluetooth printer; - 21 roughness parameters; - Display roughness value, profile and curve; - Memory of maximum 100 results; - Automatic power off
Warning
- Please confirm the size information and other product details on Attribute Information then place an order.- Image on this page only as Representative Image. It will follow the Model Number and size Information
