THK Spline Nut
#Grup produk P106592689
Spesifikasi
| Outer Diameter Tolerance (mm) | 0-(-0.062(h9)) |
|---|---|
| P.C.D (mm) | 47 |
| Allowable Torque (N m) | 211 (at contact pressure 9.8 N/mm² |
| Clearance (mm) | Maximum rotation direction: α ≦ 20 minutes |
| Dimension B (mm) | phi 6.6 |
| Dimension F (mm) | 14 |
| Dimension R (mm) | 2 |
| Dimensions d (mm) | Φ2 |
| Flange Outer Diameter (Φmm) | 61 |
| Flange Thickness (mm) | 8 |
| Length L (mm) | 50 |
| Mass (g) | 270 |
| Material | High strength zinc alloy |
| Outer Diameter d (mm) | 36 |
| Suitable For | Axis: SS2550 |
| Type | Flange type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

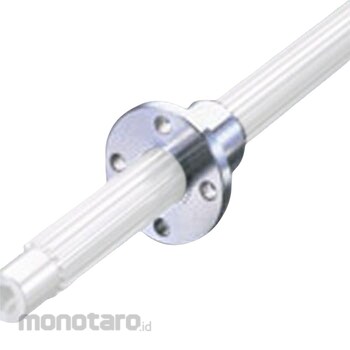

A spline nut made by die-casting a high-strength zinc alloy with excellent wear resistance. When combined with a rolled spline shaft, smooth linear motion and torque transmission can be obtained.
Warning
The delivery date will change depending on the order status.Ulasan Produk
