MT-7610 is an advanced diagnostic tool for optical fibers to help engineers quickly troubleshoot problems, allowing them to visually locate reflective events like connections and fiber breaks and non-reflective events like splices and tight bends by studying the graphical trace.
- Automatic one-button testing, wavelength support 1310, 1550nm.
- Palm design, small, lightweight, easy to carry.
- High contrast 3.5 inch color TFT LCD.
- Detect short dead zone event accurately .
- High speed signal processing, short test time and fast analysis.
- USB port connect to PC for software update and data output.
- User-friendly OTDR simulation software shows details of events.
- Built-in visual fault locator function.
- Comes with rechargeable lithium polymer battery, support max 8 working hours.

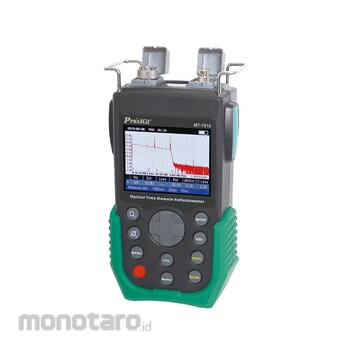

Pro'sKit Optical Time Domain Reflectometer
#Grup produk P106522653
Spesifikasi
| Dimensions (mm) | 195x110x60 |
|---|---|
| Loss Resolution (dB) | 0.01 |
| Battery Working Time (hour) | standby>15, continuous measuring>8 |
| Sampling points | Up to 8000 |
| Measurement Time (s) | 5-180 |
| Adaptor | INPUT AC 100~240 50/60Hz; OUTPUT: DC12V/2A |
| Attenuation Blind Area (m) | 8 (@minimum plus width) |
| Data Storage (MB) | 32 Built-in storage(support external TF card storage. maximum 32G/ optional) |
| Display (inch) | 3.5 color LCD |
| Dynamic Range (dB) | 24 (1310nm) / 22 (1550nm) |
| Low Battery Warning | Indication for low battery energy |
| Optical Fiber Connector | FC/PC, (SC/PC、ST/PC Optional) |
| Optical Fiber Type | SM optical fiber |
| Power Supply | Rechargeable Lithium Polymer battery 7.4v 3100mAh |
| Sampling Resolution (m) | 0.4 to 1.6 |
| Storage Temperature (°C) | -20 to +70; <90%RH |
