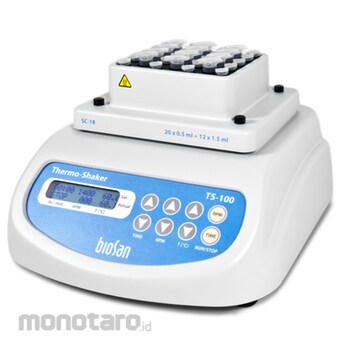

Thermo–Shaker TS-100 provides intensive mixing and temperature control of samples in microtest tubes or PCR plate. Functions of heating (up to +100°C) and mixing can be performed both simultaneously and independently, i.e. the unit implements three devices in one:
1. Shaker;
2. Dry–block Thermostat;
3. Thermo–Shaker.
TS-100 is used for DNA analysis sample preparation, for extraction of proteins, polysaccharides, lipids and other cellular components. Features of TS-100 meet the increased requirements of the user, including:
Quickly reaches the set mixing speed and maintains same amplitude of rotation around the block;
Stable maintenance of the temperature of a wide range over the entire surface of the block;
LCD display shows the set and actual temperature, speed and time;
Quiet engine operation, compact size, long service life.
Heating source is a printed heating board (12 V). Mixing is provided by movement of orbital type.
The instrument is applicable in:
Genetic analysis-in extraction of DNA, RNA and further sample preparation;
Biochemical study of enzymatic reactions and processes;
Extraction of metabolites from cellular material.
Temperature Calibration Function
With the help of the temperature calibration function the user can calibrate the unit approx. ±6% of the selected temperature to compensate differences in the thermal behaviour of tubes from different manufacturers.
BIOSAN Thermo Shaker For Microtubes And PCR Plates
#Grup produk P106244986
Spesifikasi
| Temperature Setting Range (°C) | +25 to +100 |
|---|---|
| Temperature Control Range (°C) | 5 above ambient ... +100 |
| Temperature Setting Resolution (°C) | 0.1 |
| Temperature Stability (°C) | ±0.1 |
| Temperature Accuracy (°C) | ±0.5 (at +37°C) |
| Average Heating Speed (°C/minute) | 4 (from +25 to +100°C) |
| Digital Time Setting | 1 min–96 hrs (1 min increment) |
| Display | LCD, 16 x 2 signs |
| External Power Supply Input (V) | AC 100–240 (50/60Hz); Output DC 12 |
| Input Current (V/A) | 12/3.5 |
| Maximum Continuous Operation Time (hour) | 168 |
| Overall Dimensions (WxDxH) (mm) | 220x240x90 |
| Power Consumption (W) | 42 |
| Speed Control Range (rpm) | 250–1400 |
| Temperature Calibration Coefficient Range | 0.936...1.063 (± 0.063) |
| Temperature Uniformity Over (°C) | ±0.1 (the block at +37°C), ±0.2 (block at +100°C) |
