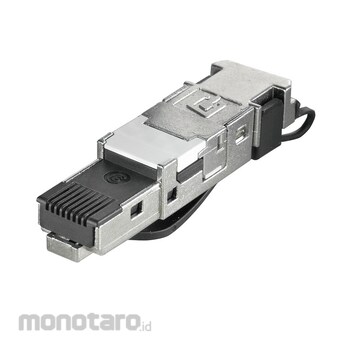

WEIDMULLER RJ45 Tool-free
#Grup produk P106135192
Spesifikasi
| Configuration | Eight-wire field-assembled RJ45 plug with colour coding on the plug, TIA A/B/ProfiNet, multiport-ready |
|---|---|
| Connection diameter, flexible (mm) | 0.48 to 0.76 |
| Connection diameter, solid | 0.41 to 0.64 |
| Contact Material | Phosphorus bronze |
| Fire load | 77 kJ |
| GTIN (EAN) | 4050120000000 |
| Conductor connection cross-section, flexible (AWG) | AWG 26/7 to AWG 22/7 |
| Conductor connection cross-section, solid (AWG) | AWG 24/1 to AWG 22/1 |
| Insulation cross-section, max. | 1.6 |
| Insulation cross-section, min. | 0.85 |
| Material locking lever | PA UL94-V0 |
| Material strain relief | PA UL94-V0 |
| Net Weight (g) | 14.15 |
| Order No. | 2703730000 |
| Qty (pcs) | 120 |
| Type | IE-PS-RJ45-FH-BK-120 |
| Version | RJ45 IDC plug |
