WEIDMULLER Female Plug, Clamping-yoke Screw Connection BVZ 7.62HP 180F SN
#Grup produk P106131619
Spesifikasi

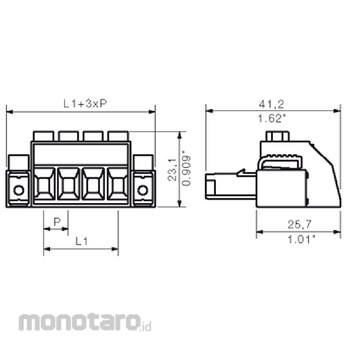

| Depth (mm) | 42.1 |
|---|---|
| GTIN (EAN) | 4050120000000 |
| Height (mm) | 23.1 |
| Net Weight (g) | 18.746 |
| Depth (inch) | 1.657 |
| Height (inch) | 0.909 |
| Order No. | 2636540000 |
| Packaging | Box |
| Pitch (inch) | 0.3 |
| Pitch in mm (P) (mm) | 7.62 |
| Product data | IEC: 1000 V / 57 A / 0.2 - 10 mm² UL: 600 V / 40.5 A |
| Product family | OMNIMATE Power - series BV/SV 7.62HP |
| Qty (pcs) | 100 |
| Type | BVZ 7.62HP/03/180F SN BK BX SO |
| Type of Connection | Field connection |
| Version | PCB plug-in connector, female plug, 7.62 mm, Number of poles: 3, 180°, Clamping yoke connection, Clamping range, max. : 10 mm², Box |
| Width (inch) | 1.5 |
| Width (mm) | 38.1 |
| Wire Connection Method | Clamping yoke connection |
