When the protective door of a machine tool, etc. is opened, the contact is opened directly by the dedicated operation key and the control circuit is cut off.
Acquired EN standards for CE marking compliance.
Obtained UL and CSA certification.
The direct opening mechanism (NC contacts only) the contact of the switch when the protective cover door opening. EN standard direct opening operation certification is indicated by a mark on the switch.
Dedicated operation keys prevent incorrect operations and fake operations.
Wide temperature range from -40 to 80°C.
The protection structure of the switch box is IP67 certified (EN60947-5-1)

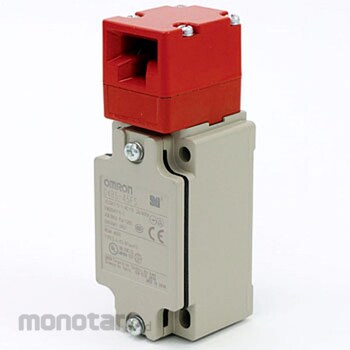

OMRON Safety Door Switch D4BS
#Grup produk P105951946
Sebelum PPN:
Rp1.199.900 - Rp1.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Ambient Relative Humidity (RH) | 95 or less |
|---|---|
| Protection Class | IP67(EN60947-5-1) |
| Rated Sealed Thermal Current | 20(EN60947-5-1) |
| Allowable Operating Speed (mm/s) | 0.1 to 0.5 |
| Contact Resistance (miliΩ) | 25 or less |
| Electric Shock Protection Class | Class I (with ground terminal) |
| Electrical Durability | 500,000 operations or more (250 VAC, 10 A Resistance load) |
| Insulation Resistance (MΩ) | Between homopolar and heteropolar terminals, between each terminal and ground, between each terminal and uncharged metal part: 100 or more (at 500 VDC) |
| Mechanical Durability | 1,000,000 times or more |
| Mounting Side | (Head) 4 orientations available (front view at shipping) |
| Operating Ambient Temperature (°C) | -40 to +80 (no icing) |
| Operating Force (N) | (Direct opening) Minimum 19.61 (EN60947-5-1) |
| Pollution Degree (Environment to Use) | 3(EN60947-5-1) |
| Rated Frequency (Hz) | 50/60 |
| Rated Impulse with Stand Voltage (kV) | Between same polarity terminals, between different polarity terminals, between each terminal and ground: 4 |
| Rated Insulation Voltage (V) | (Ui)600(EN60947-5-1) |
| Shock Resistance (m/s2) | 1000 or more |
| Shock Resistance Malfunction (m/s²) | 300 or more |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
When the protective door such as a machine tool is opened, the contact is directly opened by the dedicated operation key, and the control circuit is settled Acquisition of EN standard corresponding to CE marking fit.
Get UL, CSA certification.
Direct Opening Motion Mechanism (NC Contact side only) opens the switch contacts at the time of the protective cover. EN Standard Direct Optical Activation Authentication is displayed on the switch.
Prevent erroneous operations and false operations by dedicated operation keys.
-40 ~ 80°C and a wide range of temperature specifications.
Protection Structure of Switch Box Department is IP67 Authentication (EN 60947-5-1)
