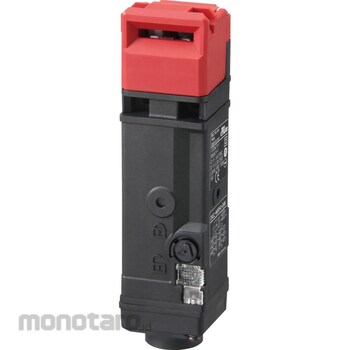

OMRON Small Electromagnetic Lock/Safety Door Switch D4SL-N3
#Grup produk P105950275
Sebelum PPN:
Rp2.599.900 - Rp3.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Rated Voltage (V) | DC24 |
|---|---|
| Allowable Operating Speed (m/s) | 0.05 to 1 |
| Ambient Relative Humidity (RH) | 95 or less |
| Rated Frequency (Hz) | 50/60 |
| Contact Resistance (miliΩ) | 200 or less |
| Electrical Durability | 150,000 times or more (at 125 VAC, 1A resistance load) |
| Impact Resistance Durability (m/s²) | 1000 or more |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Material (Head) | Resin |
| Mechanical Durability | 1,000,000 times or more |
| Minimum Applicable Load (V-mA) | DC5-1 resistance load (N level reference value) |
| Operating Ambient Temperature (°C) | -10~+55 (no freezing) |
| Operating Force | (Direct opening) Minimum 60N (EN60947-5-1) |
| Protection Class | IP67(EN60947-5-1)TYPE 4X Indoor use only(UL, CSA) |
| Rated Insulation Voltage (V) | 150(EN60947-5-1) |
| Shock Resistance Malfunction (m/s²) | 80 or more |
| Vibration Resistance (Malfunction) | 10~55Hz one amplitude 0.35mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The direction can be changed by simply pulling the head spacer with your finger, greatly reducing work time.
Feature
As you can switch the headspacer with your finger, you can change the direction, so it will significantly reduce the working timeUlasan Produk
