SSR for opening and closing a minute load with leakage current of 100μA or less and no need for bleeder resistance

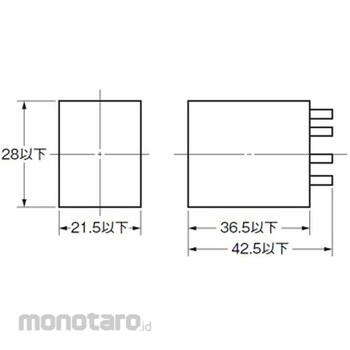

Same dimensions as MY (2-pole type) .
Solid state relay for switching 1 to 500mA micro load.
AC/DC open/close, DC open/close is non-polar.
A wide range of opening and closing is possible with AC19.2 to 264V and DC19.2 to 125V.
AC full-wave rectification load and half-wave rectification load can be opened and closed.
With operation indicator lamp. SSR input status can be checked at a glance.
Open/close the MY directly (no bleeder resistor required) .
Absorption of external surges is excellent due to the built-in varistor.
For micro load control, valve, solenoid
OMRON Power MOS FET Relay G3FM
#Grup produk P105940870
Spesifikasi
| Type | Power relay |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SSR for opening and closing a minute load that does not require a bleeder resistor and has a leakage current of 100 μA or less.Same dimensions as shape MY (2-pole type) .
Solid-state relay for opening and closing a small load of 1 to 500mA.
AC/DC shared opening and closing, DC opening and closing is non-polar.
It can be opened and closed in a wide range of AC19.2 to 264V and DC19.2 to 125V.
AC full-wave rectified load and half-wave rectified load can be opened and closed.
With operation indicator lamp. You can check the input status to SSR at a glance.
The shape MY can be opened and closed directly (no bleeder resistance required) .
The built-in varistor has an excellent effect of absorbing external surges.
Use
Micro load control, valve solenoidUlasan Produk
