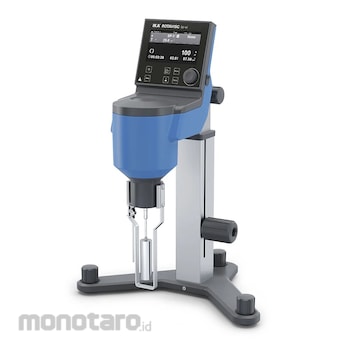

ROTAVISC lo-vi Complete
The new ROTAVISC series determines the viscosity of liquids in all areas of application ranging from the laboratory to quality control. The four devices measure in different viscosity ranges. Regardless of a simple or demanding viscosity measurement - the ROTAVISC delivers rapid and accurate results. The scope of delivery includes a standard spindle set (SP1-SP4), a protective bracket, temperature sensor and ROTASTAND stand.
Scope of delivery
ROTAVISC lo-vi Complete
ROTASTAND
SP set-1
PT 100.8
Guard rail
USB Cable - USB A to Micro-B, 2 m
Ika Laboratories Digital Viscometer
#Grup produk P105855776
Spesifikasi
| Permissible Ambient Temperature (°C) | 5-40 |
|---|---|
| Telescope Stand Stroke (mm) | 200 |
| Voltage (V) | 100 - 240 |
| Stroke (mm) | Max. 200 |
| Working Temperature (°C) | -400 |
| Basic Container Volume (ml) | 600 |
| Current Consumption (mA) | 1000 |
| Diameter (mm) | 16 |
| Dimensions (WxHxD) (mm) | 351x629x372 |
| Frequency (Hz) | 50/60 |
| Input Power (W) | 24 |
| Pemitted Density (kg/dm3) | 9999 |
| Permissible Relative Humidity | 0.8 |
| Plug-In Coupling (Ømm) | 12 |
| Setting Accuracy Speed (rpm) | 0.01 ± |
| Speed Range (rpm) | 0.01 - 200 |
| Support Rod Diameter (mm) | 16 (with Integrated Fastening on Stand) |
| Time Setting Range (minute) | 0.017 - 6000 |
| Viscosity Measuring Range (mPas) | 6000000 |
| Weight (kg) | 7.1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Easy to operateThe generous 4.3″ TFT display allows for an intuitive menu guidance. A digital spirit level also supports the correct set-up of the start-up condition. The simple ramp function simplifies repetitive tasks.
- Highest measurement accuracy
The level of measurement accuracy of the ROTAVISC rotational viscometer for both Newtonian and non-Newtonian fluids is +/- 1 % of the measuring range. The reproducibility is +/- 0.2 %.
- Stepless speed
ROTAVISC is a viscometer, which offers stepless speed adjustment.
- IKA Rotavisc lo-vi Complete
Viscosity measuring range: 1 - 6,000,000 mPas
