Spesifikasi
Material | S45C (carbon steel for machine structure) |
---|---|
Assembly Distance (mm) | 20 |
Twist Angle (°) | 35 |
Twist direction | R |
Hole Length (mm) | 12.9 |
Tooth Tip Angle (°) | 73 (21ft) |
Assembly Distance A (mm) | 20 |
Gear accuracy | JIS B 1704 (ISO) 3rd grade (Induction hardening product: 4th grade) |
Pressure Angle (°) | 20 |
Module | 1 |
Number of Teeth | 45 |
Reference Circle Diameter (mm) | 45 |
Tooth Width (mm) | 6.7 |
Hole Diameter (mm) | 10 |
Tooth Tip Circle Diameter (mm) | 45.25 |
Hub Length (mm) | 8 |
Hub Outer Diameter (mm) | 25 |
Gear Ratio | 3 |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Warning
If the mating gear is used in combination with a product other than our company, problems may occur.Feature

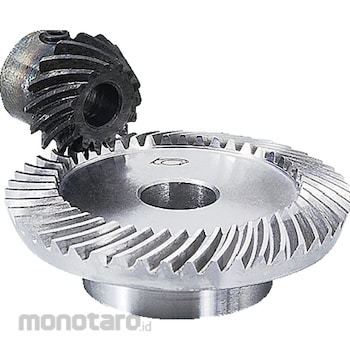

A bevel gear that is easy to perform additional machining.The end of the product number is induction hardened.
Use
Used for general industrial machinery, food machinery, medical equipment, etc.Ulasan Produk
