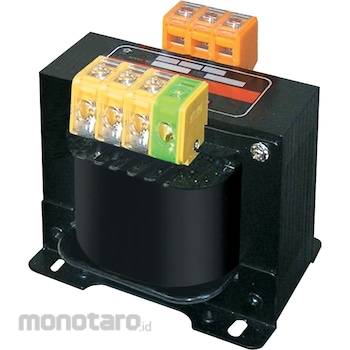

Swallow Electric Transformer (Down Type)
#Grup produk P105561354
Sebelum PPN:
Rp1.799.900 - Rp2.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Secondary Current (A) | 1 |
|---|---|
| Capacity (VA) | 100 |
| W x D x H (mm) | 96x102x103 |
| Terminal Screw (mm) | 4 |
| Finish Material | Copper, Iron, Resin |
| Insulation Type | E Type |
| Secondary Voltage (V) | 110-100-0-E |
| Standard (Certified) | Compliant with JIS Standard |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- An industrial single phase compound transformer captive terminal block.- With electrostatic shield.
- Poor insulation caused by moisture and dust on the paper roll bobbin can be prevented by using a resin molded bobbin.
- There are no troubles of removing the protective cover or risk of screws falling off and only have to insert the crimp terminal and tighten for connection, reducing the time to connect the wires by approx. 1/5.
- By color coding the terminal block of each phase by input, output and ground, it is easy to tell apart and improves erroneous wiring prevention effect.
- Adoption of pop nut enables working with screwdrivers vertically and installation work can be performed quickly and surely.
Use
- Convert input side voltage to output side voltage.Ulasan Produk
