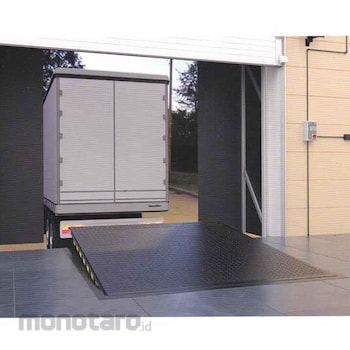

DOORHAN Dock Levelers

Construction :
1. Lip.
2. Toeguard.
3. Lip cylinder.
4. Lifting cylinder.
5. Crossbeam.
6. Front beam.
7. Hydraulic pump.
8. Deck.
9. Signal black and yellow stripes.
10. Control unit.
Operation :
- Conduct routine inspections and maintenance of the dock leveler to ensure its safe and smooth operation.
- Keep people and goods clear of working area while operating the dock leveler.
- Keep overhead door fully open while operating the dock leveler.
- Make sure the vehicle is properly parked against the dock bumpers. Chock the wheels if needed.
- Do not drive on the leveler unless the lip is securely positioned on the truck bed and has a minimum of 100 mm overlap on its surface.
- Ensure that the control unit location allows the operator to clearly see and control dock leveler operation.
- Use dock levelers with 1,3 Н/mm² point load only with standard forklifts having inflatable wheels.
- Use dock levelers with 6,5 Н/mm² point load with loading machinery having high point load, including electric stackers, pallet carriers, reach trucks, order picking stackers on polyurethane wheels.
