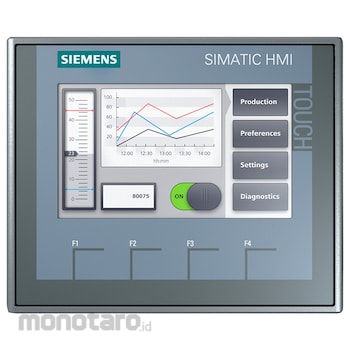

SIEMENS SIMATIC HMI, KTP400 Basic Panel, Key/Touch Operation
#Grup produk P105196479
Spesifikasi
| Product Type Designation | KTP400 Basic color PN |
|---|---|
| Design of Display | TFT widescreen display, LED backlighting |
| Screen Diagonal (inch) | 4.3 |
| Display Width (mm) | 95 |
| Display Height (mm) | 53.9 |
| Number of Colors | 65536 |
| Backlight Dimmable | Yes |
| Design as Touch Screen | Yes |
| Dimensions Mounting Cut Out (WxH) (mm) | 123x99 |
| Dimensions of Housing Front (WxH) (mm) | 141x116 |
| Max. Permissible Angle of Inclination without External Ventilation (°) | 35 |
| Mean Time Between Failure Backlight (hour) | 20000 (@25°C) |
| Mounting Position | vertical |
| Number of Function Keys | 4 |
| Numeric/Alphanumeric Keyboard | Yes; Onscreen keyboard |
| Overall Depth (mm) | 33 |
| Permissible Range, Lower Limit (DC)(V) | 19.2 |
| Permissible Range, Upper Limit (DC)(V) | 28.8 |
| Resolution HxV (pixels) | 480x272 |
| Weight without Packaging (g) | 360 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SIMATIC HMI, KTP400 Basic, Basic Panel, Key/touch operation, 4" TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
